ES01-2000-1 Logistic Electric Scooter
we are only special design and professional manufacture High quality and technology for all electric Scooter .( 20 years old) . Whenever new design , open mold , and manufacture ,export that are completely offer.We are the specialized factories. Let you know ,
ALL products and parts and manufacture in factory and new factory of china. We are glad with you to cooperate sell for all my products in your country .
| Model No. | ES01-3000-1 | ||
|---|---|---|---|
| Controller | 72V/3000W | ||
| Wheelbase (mm) | 1350 | ||
| Ground Clearance (mm) | 145mm | ||
| Li-ion Battery | 72V/38.5Ah | ||
| Maximum Speed | 70km/h | ||
| Distance range | 80-90km(70km/h) | ||
| Motor type | Brushless hub motor | ||
| Motor(rated Power) | 72V/3000W | ||

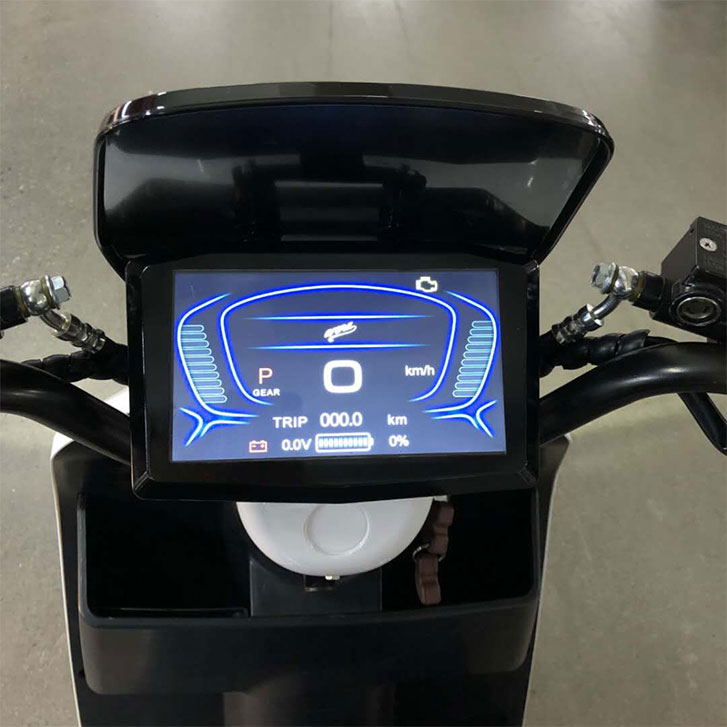

| Meter : | 7 inch TFT high brightness display | ||
| Charging time |
OUTPUT : DC3 / A6-8h | ||
| Max current | 33A±1A | ||
| Min voltage | 50±0.5 V | ||
| N.W/G.W(With battery) | 49/58kgs | ||
| Tires |
Front 16 inch /Rear 14 inch | ||
| Brakes | Front and rear : disk / disk | ||
| Suspension |
Front 2 shocks / Rear Hydraulic only 1 shock absorber(easy change parts) | ||
| Climbing |
12° | ||
| MAX loading |
150kg(rear shelf load ≥ 30kg) | ||
| 40 (HQ) container |
46 pcs | ||
| Dimensions : |
1800mm x570mm x 1050mm | ||
| Packing size: |
1750 mmx 550mm x 850mm , | ||
